Which connector and cable will I need ?
Modified on: Thu, 25 Mar, 2021 at 6:24 PM
The Nebra outdoor hotspot antenna connection would be N Type Female. The outdoor antenna connects directly to the enclosure. The Nebra Indoor hotspot antenna connection would be RP-SMA Female. The Antenna connection is N-Type Male. The Pigtail that the antenna comes with is N-Type Female to RP-SMA Male. If you’re connecting from the indoor units and running it outdoors, you’ll need the RP-SMA MALE to N-TYPE Female on the cable.
We would recommend lesser the better but keep it below 25ft. For LMR-400 at 900mhz, at every 100ft there is about 3.9db loss.

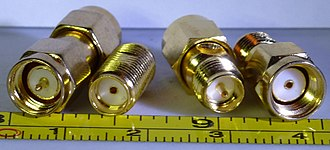

SMA male connector, SMA female connector, RP-SMA female connector, RP-SMA male connector
